The self-propelled lift aerial work platform can walk quickly and slowly at different heights, and can continuously complete up and down,Forward, backward, turn, etc. This product is made of high-quality structural steel, laser welding electronic manipulator single-sided welding double-sided forming process, imported from Italy Pressure pump station or Anshan joint venture hydraulic pump station, aerospace cartridge valve technology, the platform is equipped with alarm devices such as level alarm, balance valve, automatic safety board, etc., the platform safety can beRelying on durability, the working height can reach 14 meters, the load is 300 kg, the fence can be extended horizontally, which greatly expands the working range, the whole machine is guaranteed for one year, and the key components are five years.Warranty, suitable for customers who have high-altitude work needs such as factory workshops, square lobby airports, parks, etc.
Model | CLSE6 | CLSE8 | |
Max.Platform Height | mm | 6000 | 8000 |
Max. Work Height | mm | 8000 | 10000 |
Max.Machine Height | mm | 7100 | 9100 |
Min.Platform Height | mm | 1010 | 1200 |
Ground Clearance | mm | 20 | 20 |
Lift Rated Capacity | kg | 300 | 300 |
Platform Extend Capacity | kg | 100 | 100 |
Platform Size | mm | 1880×900 | 1880×900 |
Platform Extend Length | mm | 900 | 900 |
Max.Drive Speed (platform Stowed) | km/h | 3~4 | 3~4 |
Max.Drive Speed (platform Elevated) | km/h | 0.6~1 | 0.6~1 |
Min.turning Radius | mm | 2000 | 2000 |
Max.Climbing Capacity | % | 10~15 | 10~15 |
Driving Wheel Size | mm | φ305×100 | φ305×100 |
Caster Size | in | φ305×100 | φ305×100 |
Driving Motor | v/kw | 2×24/0.5 | 2×24/0.5 |
Lifting Motor | v/kw | 24/2.2 | 24/2.2 |
Anerold battery | v/Ah | 2×12/150 | 2×12/150 |
Charger | V/A | 24/15 | 24/15 |
Pothole Protection System | Machine Control | Machine Control | |
Overall Size(L*W*H) | mm | 2050*900*2150 | 2050*900*2270 |
Overall Net Weight | kg | 1500 | 1700 |
Product Details:

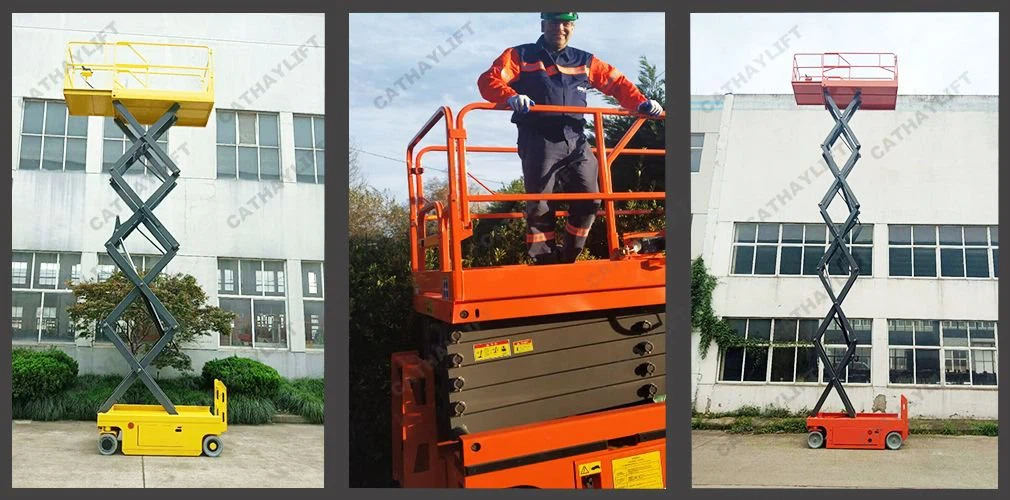

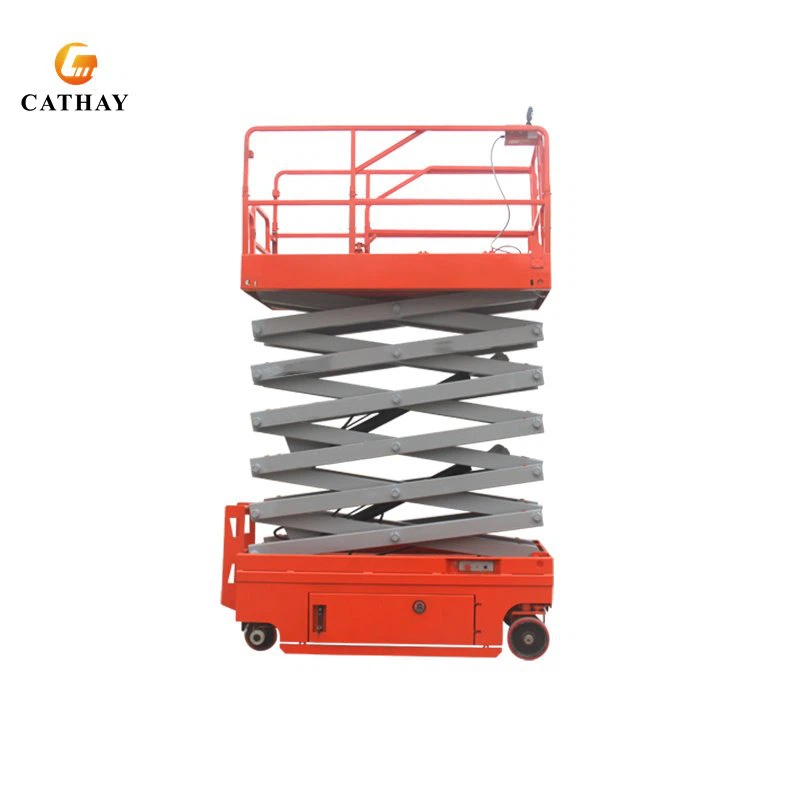

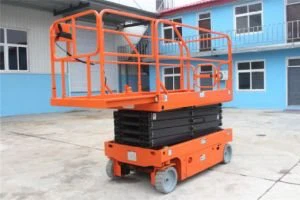

Overview
Overview
Overview
Control Handle(Curties)
Ground Control Panel
Extendable Platform 900mm
Trojian Battery(America)
Hydraulic Pump Station ( Switzerland Bucher Motor)
Smart Charger(Internal)
Buzzer,Tilt Sensor
Electric Steering(Stable And High Maneuverability)
Manually Release The Brake Button
Advantages:
Using high-quality structural steel, single-sided welding and double-sided forming process, the original imported hydraulic pump station or domestic joint venture hydraulic pump station, the elevator is equipped with a balance
Valves, automatic pressure keeping and other safety devices, the platform is safe, reliable and durable.
The sturdy structure makes the deflection and swing of the lift extremely small. With automatic walking function, three options for power control and battery-controlled walking are available, which can be used in different working conditions.
In the state, no external power supply is required, the handle controls the walking,Adjustable speed, flexible movement, convenient operation, free lifting, only one person can complete forward, backward, steering, fast, slow walking and up and down actions.Save labor and effort. Can be designed and manufactured according to user requirements. Self-propelled lift is a wide range of special equipment for high-altitude work. Its scissor mechanical structure makesThe lifting platform has high stability, wide working platform and high carrying capacity, which makes the aerial work range larger and suitable for multiple people to work at the same time.
