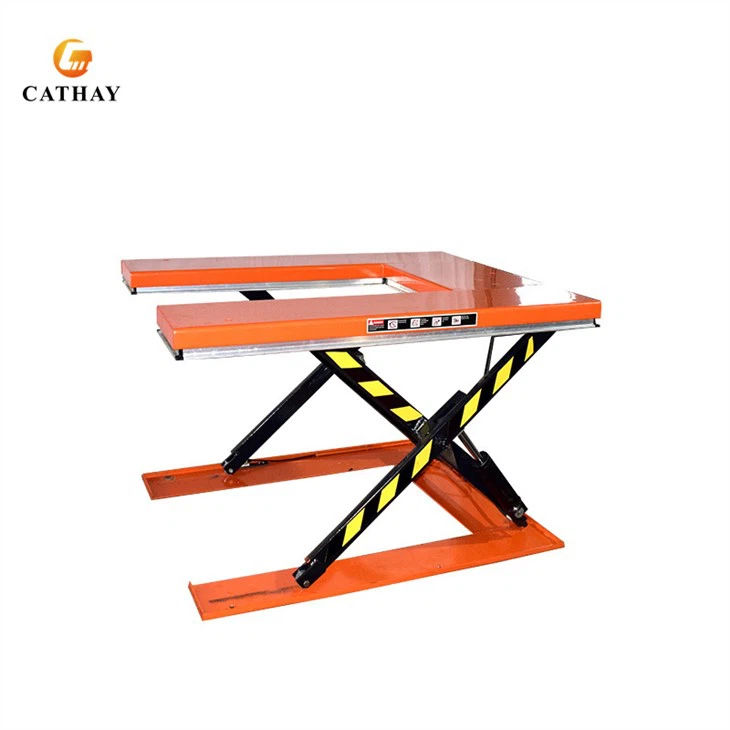

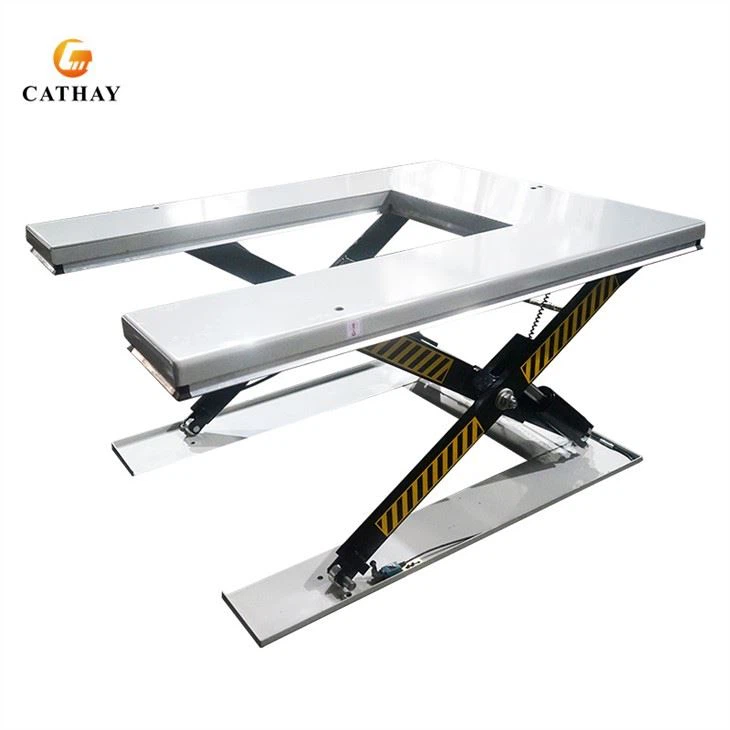

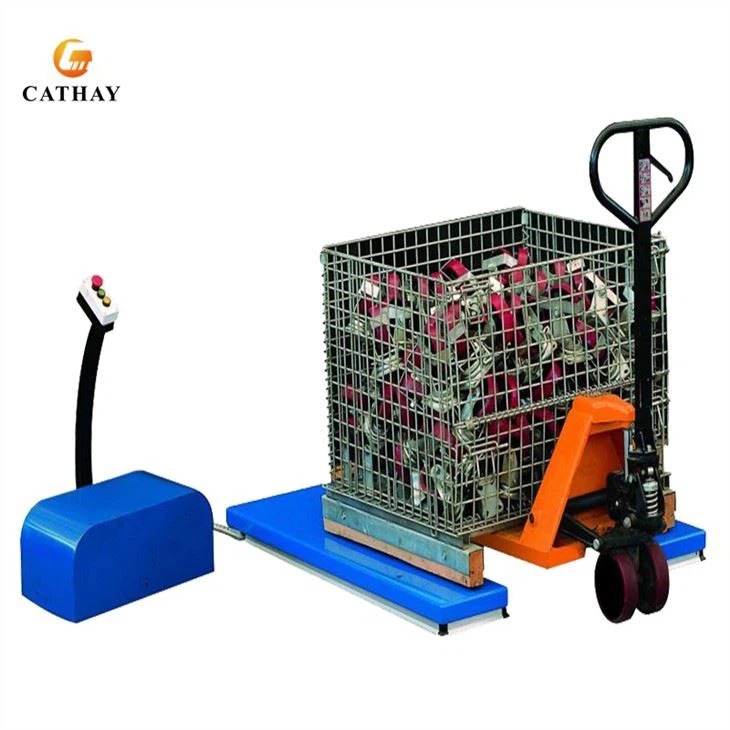

The Hydraulic Pallet Lift Table is specially designed to facilitate the loading and unloading of goods on pallet trucks or forklifts, if the standard model does not meet your needs. We can customize the appropriate size to fit the size of the pallet truck's fork, if you have specific needs, please send an inquiry, we will provide you with the most reasonable solution.
Model | LPU600 | LPU1000 | LPU1500 | |
Load Capacity | kg | 600 | 1000 | 1500 |
Platform size LxW | mm | 1450x985 | 1450x1140 | 1600x1200 |
Size A | mm | 200 | 280 | 305 |
Size B | mm | 1080 | 1080 | 1150 |
Size C | mm | 580 | 580 | 590 |
Min.Platform Height | mm | 85 | 85 | 105 |
Max.Platform Height | mm | 870 | 870 | 870 |
Base size LxW | mm | 1335x947 | 1335x947 | 1335x947 |
Lifting time | s | 25-35 | 25-35 | 30-40 |
Power | 380V/50Hz | 380V/50Hz | 380V/50Hz | |
Net weight | kg | 207 | 280 | 380 |
